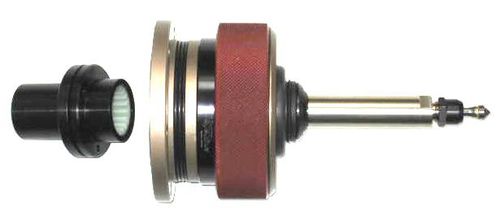

Turning spindle SX-Universal

AC motor

engraflexx type SX-Universal Universal, laterally deflecting spindle mainly used in robots and special machinery, for deburring and finishing of parts on which dimensional and positional differences have to be compensated automatically. Tool specifications: Integrated, lateral deflection function of the spindle up to 15 mm maximum constant deflection force even with larger spindle deflection uniform, regular machining, independent from dimensional differences on the workpieces Lateral deflection force of the spindle steplessly adjustable via knurled sleeve settings readable on an engraved scale Collet chuck as tool holder for machining tools standard diameter of 6 mm (8 mm maximum) other diameters or special adapters available on request Speed limits standard execution 20’000 rpm special execution 30’000 rpm Weight: 2.4 kgs General information: Spindle mounted in separate suspension great inherent stability and smooth running complete absorption of the occurring machining forces Possible installation of various driving motors of a rather light construction only torque transfer required Spindle mounting via flange adapter Utilization in combination with a variety of working tools rotative pins for milling and deburring abrasive tools for parts finishing brushes for cleaning and deburring Various special executions are available spindle with integrated lateral cutter buffer system for parts finishing with precise measurement instruction milling of defined radii milling of concrete chamfer widths spindle with additional axially spring-loaded tool fitting
