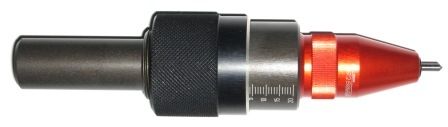

Scribe marking tool max. 6 mm | R-20

gravostar R-20 Field of application: Individual, mainly finer marking of any workpieces with regular or uneven surfaces Tool specifications: Very easy handling Use in machining centres, automatic lathes, etc. (no additional installations required) Marking depth individually adjustable by means of adjustment sleeve Tool shank with 20 mm Weldon shaft General information: Integrated, automatic distance compensation up to 6 mm (Uniform marking depth also on uneven marking surfaces) No revolution speed for the tool spindle required Extremely high resistance to wear of the hard metal marking needle The needle can be easily replaced in only a few steps Can be used for almost all machinable materials (hardness up to approx. 62 HRC) Very short marking time Feed speed more than 5‘000 mm/min possible For universal application Weldon shank shaft with a diameter of 20 mm
