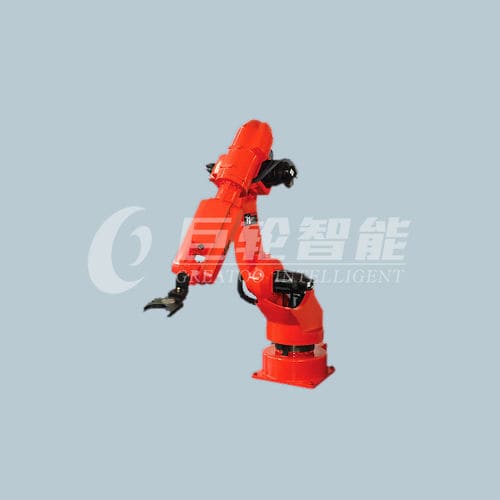

Articulated robot ODG-JLRB206-axishandling
Add to favorites
Compare this product
Characteristics
- Type
- articulated
- Number of axes
- 6-axis
- Function
- handling
- Payload
20 kg
(44.092 lb)- Reach
1,595 mm
(62.8 in)- Repeatability
0.05 mm
(0.002 in)- Operating temperature
Max.: 45 °C
(113 °F)Min.: 0 °C
(32 °F)- Weight
260 kg
(573.2 lb)
Description
Drive Ac Servo Drive
Action Range(Rated Speed)
Axis 1 ±165° (2.75rad/s 157° /s)
Axis 2 -80° -+110° (1.96rad/s 112° /s)
Axis 3 -80° ~+110° (2.61 rad/s 150° /s)
Axis 4 ±180° (3.92rad/s 225° /s)
Axis 5 ±110° (3.14rad/s 180° /s)
Axis 6 ±360° ( 3.92rad/s 225° /s)
Humidity - No flammable/corrosive gas and liquid. Keep away from electrical noise source( plasma).
Installation Way - Ground Installation
