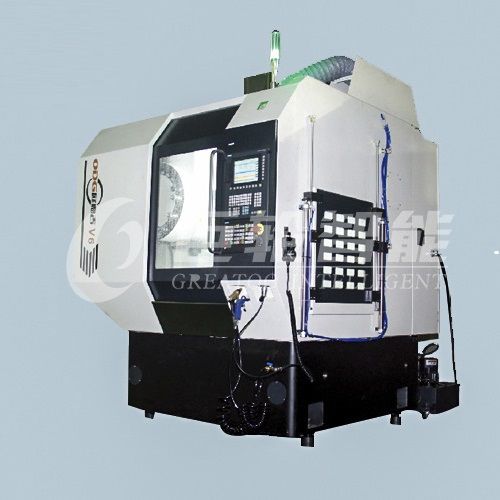

3-axis CNC machining center ODG-V6verticalgantryfor marble
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- gantry
- Machined material
- for marble
- Spindle mount
- BT 30
- Number of tool stations
- 24 tools
- Associated functions
- milling, tapping, drilling
- Applications
- for molds
- Other characteristics
- high-speed, high-precision, high-rigidity
- X travel
650 mm
(25.59 in)- Y travel
520 mm
(20.47 in)- Z travel
320 mm
(12.6 in)- Rotational speed
30,000 rpm
(188,496 rad.min-1)- Power
5.5 kW
(7.48 hp)- Work feed X-axis
60,000 mm/min
(39 in/s)- Work feed Y-axis
60,000 mm/min
(39 in/s)- Tool weight (max)
3 kg
(6.6 lb)- Positioning accuracy
0.005 mm
(0.0002 in)- Tool-changing time
1.2 s
- Weight
5,000 kg
(11,023.11 lb)- Overall length
2,010 mm
(79.1 in)- Overall width
1,850 mm
(72.8 in)- Overall height
2,620 mm
(103.1 in)
Description
high-speed machining center with high rigid gantry frame structure design, lathe bed, column base of machine tool machine tool such as the use of advanced marble material, has excellent damping vibration reduction performance, low thermal expansion coefficient, high corrosion resistance and good mechanical properties, high heat stability, high damping vibration reduction performance and high dynamic and static mechanics performance, meet the requirements of the high speed precision and efficient processing. Widely used in mould and parts, milling, drilling, tapping and other manufacturing production has quick speed, high precision, processed products high quality, stable performance, low cost advantages.
