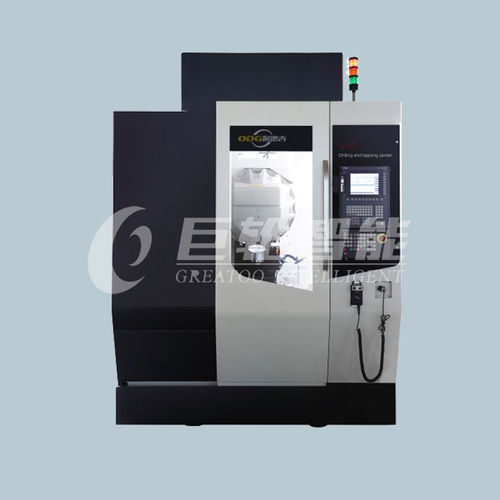

3-axis CNC machining center ODG-V5verticalBT 3024 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 30
- Number of tool stations
- 24 tools, 16 tools
- Other characteristics
- high-speed
- X travel
500 mm
(19.69 in)- Y travel
400 mm
(15.75 in)- Z travel
300 mm
(11.81 in)- Rotational speed
15,000 rpm, 20,000 rpm, 24,000 rpm
(94,248 rad.min-1, 125,664 rad.min-1, 150,796 rad.min-1)- Power
4.9 kW, 5.5 kW
(6.66 hp, 7.48 hp)- Work feed X-axis
48,000 mm/min
(31 in/s)- Work feed Y-axis
48,000 mm/min
(31 in/s)- Tool weight (max)
3 kg
(6.6 lb)- Positioning accuracy
0.005 mm
(0.0002 in)- Tool-changing time
1.8 s
- Weight
3,000 kg
(6,613.87 lb)- Overall length
2,200 mm
(86.6 in)- Overall width
1,680 mm
(66.1 in)- Overall height
2,500 mm
(98.4 in)
Description
Working dimension 650x400mm
Spindle center to slide mounting surface 450mm
Type T groove size 3-14x100 mm x n
Spindle end face to the maximum / minimum distance 450/150mm
Principal axis
Maximum output torque
23 N · m
25 N · m
Maximum tool length
150mm
Tool magazine form
Cutter arm type cutter
High speed servo tool stock
Maximum tool diameter
65mm/75mm
60mm (full knife) /120mm (adjacent to the empty knife)
Location uncertainty
VDI/DGQ3441-X/Y/Z(axis)
0.008/0.008/0.008mm
numerical control system
SIEMENS828D
Total electric capacity
12.5kVA
Air flow
0.1~0.2M³/min
Other GREATOO INTELLIGENT EQUIPMENT INC. products
Nc Machine Tool
