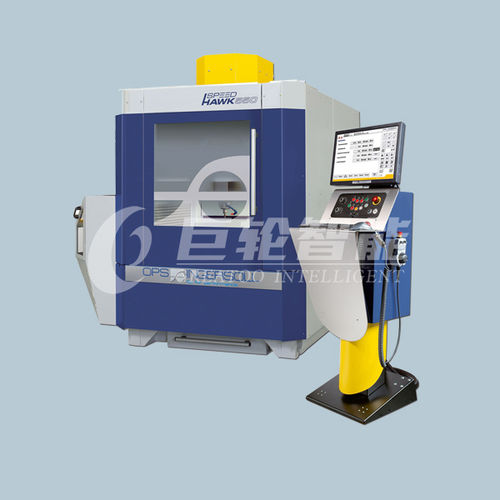

5-axis CNC machining center HAWK 550vertical32 toolscompact
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Number of tool stations
- 32 tools
- Other characteristics
- compact, high-precision, contour
- X travel
550 mm
(21.65 in)- Y travel
400 mm
(15.75 in)- Z travel
400 mm
(15.75 in)- Rotational speed
1 rpm, 3,000 rpm, 40,000 rpm, 42,000 rpm
(6 rad.min-1, 18,850 rad.min-1, 251,327 rad.min-1, 263,894 rad.min-1)- Power
9 kW, 15 kW
(12.24 hp, 20.39 hp)- Table load capacity
500 kg
(1,102 lb)- Weight
7,200 kg
(15,873.28 lb)- Overall length
2,580 mm
(101.6 in)- Overall width
1,900 mm
(74.8 in)- Overall height
2,260 mm
(89 in)
Description
Particularly compact, easy to approach, excellent contour accuracy
Product Application：
Mold insert, precision parts, copper electrode and graphite electrode processing, dust materials and special materials processing
Workbench
Type T tank can be loaded on top of fourth / Fifth
Numerical control system
3060/windows XP Andron touch screen, PC-NC/ dual processor, electronic hand wheel remote control
Drive type
Screw spindle, direct measurement system of AC servo motor, linear ball (Heidenhain)
Matching
Swing round: B axis -120 degrees /+60 and C axis torque motor 40U/min, workpiece weight: 250kg
More matching
Laser tool setting, automatic tool cleaning station, infrared probe, 3D detection function, in clamping state measurement, graphite absorption device, oil fog absorbing device, wet mixing industry and trade, cutting chip conveyor chain, error messages, SMS tips, automation is ready to
