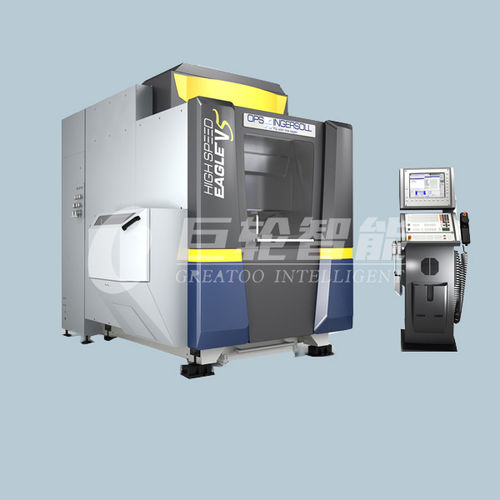

3-axis CNC machining center Eagle V55-axisvertical32 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis, 5-axis
- Spindle orientation
- vertical
- Number of tool stations
- 32 tools
- Other characteristics
- high-speed, compact, laser
- X travel
550 mm
(21.65 in)- Y travel
400 mm
(15.75 in)- Z travel
400 mm
(15.75 in)- Rotational speed
Min.: 1 rpm
(6 rad.min-1)Max.: 42,000 rpm
(263,894 rad.min-1)- Power
15 kW
(20.39 hp)- Workpiece max height
380 mm, 400 mm
(15 in, 16 in)- Table load capacity
500 kg
(1,102 lb)- Weight
7,200 kg
(15,873.28 lb)- Overall length
2,800 mm
(110.2 in)- Overall width
2,020 mm
(79.5 in)- Overall height
2,450 mm
(96.5 in)
Description
V5 machining range under the maximum size of the compact external dimensions, fourth / fifth axis maximum switching load of 250 kg, the maximum tray 400X400mm. Also excellent for automation and operator access, especially for the protection of the laser measurement system.
Workbench
Type T tank can be loaded on top of fourth / Fifth
T type groove
5x14H12
Load power
32KVA
Matching
Swing round: B axis -120 degrees /+60 and C axis torque motor 40U/min, workpiece weight: 250kg
