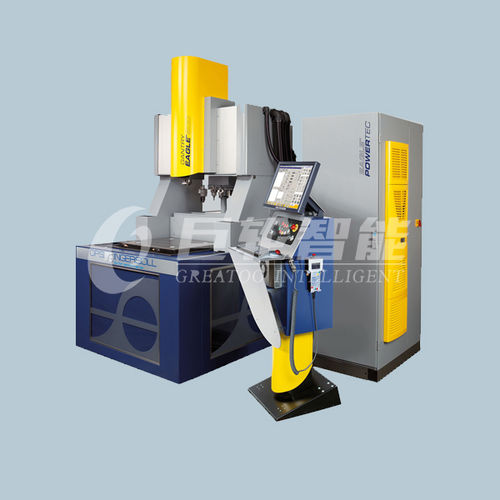

3-axis CNC machining center Eagle 500verticalgantrycompact
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- gantry
- Other characteristics
- compact, high-precision
- X travel
525 mm
(20.67 in)- Y travel
400 mm
(15.75 in)- Z travel
450 mm
(17.72 in)- Power
3.9 kW
(5.3 hp)- Workpiece max height
395 mm
(16 in)- Work feed X-axis
Min.: 0 mm/s
Max.: 83 mm/s
(3 in/s)- Work feed Y-axis
Min.: 0 mm/s
Max.: 83 mm/s
(3 in/s)- Weight
4,360 kg
(9,612.15 lb)
Description
Tank: long / wide / high 770/670/440 mm
Product Application：
Convincing technology to ensure your competitive advantage, good product continuous improvement, gantry machine tool structure of our success is new gantry Eagle models based, high dynamic, meet the demand of high power Tec Eagle pioneer technology; meet the requirements of the highest accuracy, in the machining of complex geometry to achieve better surface quality.
Machine-outil
Poids de l'alimentation
640kg
Alimentation
16KVA
Relais
32A
Tension / fréquence
400/50
Raiure de travail
Type
Levage intégral
Taille interne de la rainure de travail (long x largeur x hauteur)
770x670x440mm
Tête de travail
Poids maximal de la pièce
100 kg
Table de travail pour installer la version distance min/max
135/585mm
Axe C
Vitesse (réglable)
1-20 minutes
Instruction minimale
0,001°
Poids maximal d'échange manuel d'électrodes
50kg
Poids maximal d'échange automatique d'électrodes
15 kg
Inertie de mouvement maximale
0,4kg/㎡
