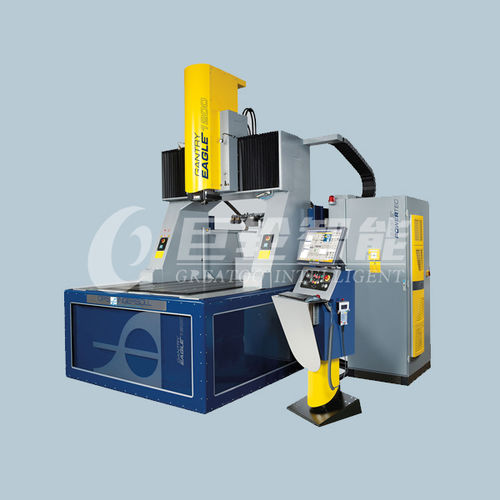

4-axis CNC machining center Eagle 1200

verticalgantryhigh-speed

Tank: long / wide / high 1270/1770/680 mm No charging time, complete or partial processing, Longmen type machine tool structure Product Application： Machinery optimal scheme and the diversified use of possibility; has a unique potential; due to high feed speed and Eagle power jump high speed lift knife technology, gantry Eagle 1200 in the machining of complex workpiece marching power enhancement, also used in the efficient processing of the mould; despite the use of diversification, gantry Eagle 1200 assurance to very precise processing with remarkable speed. Machine tool Power supply weight 640kg Power supply 18KVA Relay 32A Voltage / frequency 400/50V/Hz Working groove Type Integral lifting Internal size of working groove (long x width x height) 1270x1770x680mm Maximum height of the liquid level can be programmed / automatic 640（1000）mm Working head Maximum weight of workpiece 300kg Working table to install version distance min / Max 100/800（440x1140）mm C axis Speed (adjustable) 1-20min Minimum instruction 0,001° Maximum manual electrode exchange weight 50kg Maximum automatic electrode exchange weight 25kg Maximum motion inertia 0,4kg/㎡ Torque 120Nm workbench able size (length x width) 1140x1640(1110x1610)mm Trip stroke in the processing slot 1000x1510x700(880x1360x700)mm Control system PC-NC dialogue 2x32bit Drive type Digital AC servo motor Maximum high speed lift 18000mm/min Working liquid box Type of filter element Cylinder (built in) Filtration area 32㎡ Total tank capacity 2800(4800)ltr Electrode exchange system Type Rotating disk Electrode Bank (optional) 13（30/48）
