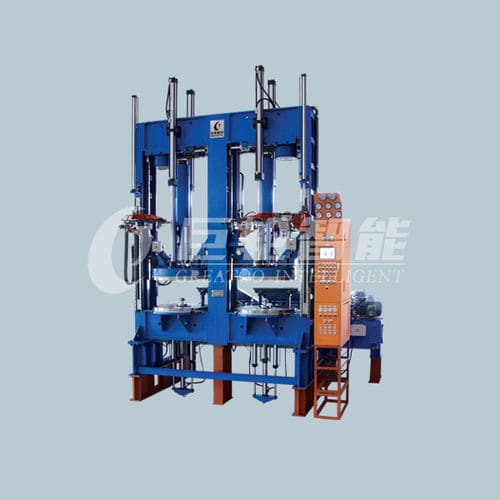

Vulcanizing press

hydraulicdoublePLC-controlled

Products for dual mode, frame type, independent units, heating, hot plate type B full hydraulic type central organization, vulcanization chamber on the vertical lift (beam lifting), overhead type single cylinder pressure hydraulic tire vulcanizing machine lock mode. Apply to install adjustable die with two die, sulfide steel ring diameter 12 "- 24" different specifications of the new wide cross-section high-grade car tires, all-steel radial bridge meet the nitrogen gas or steam curing process. According to user requirements can be equipped with new balance type two station another four point after aeration device, simplex bit tire machine, pneumatic or electric two worktables deposit sod tire machine, pneumatic or electric tires and etc. Electric control system adopts PLC programmable controller as the real-time control core, industrial touch screen as man-machine interface, can realize vulcanization process parameter Settings, vulcanization real-time parameters collection, preservation, alarm and historical visual query, etc., with Ethernet interface, support the vulcanizing machine cluster network. Hydraulic control system driven by a hydraulic station one or more vulcanizing machine, oil pressure and flow control using proportional control technology.
