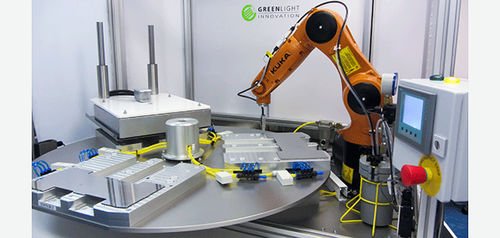

Robotic assembly machine

for industrial applicationsrotating table

Greenlight offers fully integrated robotic fuel cell assembly equipment, including cell and stack assembly and inspection, liquid dispensing, and stack welding systems. Greenlight Robotic Applicator System Details: Complete dispensing system that includes, Kuka 6-axis Agilus robot and RC4 controller, smartPAD teach pendant, PLC and HMI, sealant pot and IR curing oven Designed to accurately and quickly dispense sealants and lubricants, such as silicone, epoxy, and almost any type of liquid material Features 700mm reach and a 6kg capacity (other specifications available) Allows high working speeds up to 2 metres per second Dispenses liquids with precision; repeatable to ±0.030mm Permits continuous dispensing capability for increased production rate Features a rotating carousel, designed to accommodate up to 8 nests - parts can be loaded and unloaded manually or automatically, while dispensing, curing, inspection and other assembly steps are being performed
