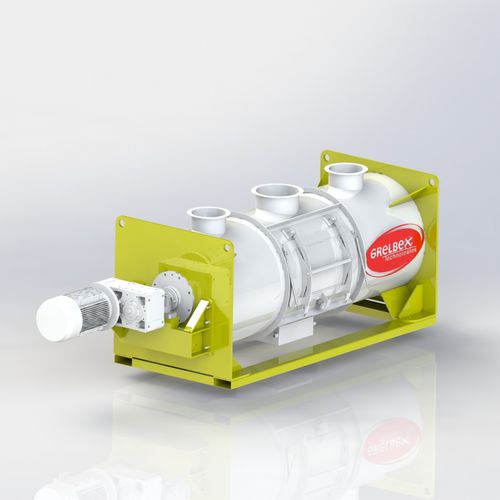

Rotor mixer MSplowsharebatchsolid/liquid
Add to favorites
Compare this product
Characteristics
- Technology
- rotor, plowshare
- Batch/continuous
- batch
- Product type
- solid/liquid, powder, granules
- Configuration
- horizontal
- Other characteristics
- steel, rotary
- Applications
- for the food industry, for the chemical industry, for the pharmaceutical industry, for the mining industry, for bulk materials, for pasty products, for the recycling industry
- Engine power
Max.: 75 kW
(101.97 hp)Min.: 1 kW
(1.36 hp)- Capacity
Max.: 480 l
(126.8 gal)Min.: 2 l
(0.53 gal)- Empty weight
Max.: 7,800 kg
(17,196.1 lb)Min.: 300 kg
(661.4 lb)
Description
THEORY OF OPERATION:
- In a metal bowl, a rotor consisting of tools in the form of plows-hares, by side and reverse skimming, turns over the product and throws it towards the outside.
- Supply is form the top and emptying is through the center at the bottom.
- The operating cycle is discontinuous.
DESIGN :
- Material used : carbon steel or stainless steel.
- Metal bowl.
- Rotor consisting of machined shaft on wich plowshare-shaped tools are adapted.
- Excellent sealing is provided at both ends of the shaft by a stuffing box.
- Rotor drive is by reducer motor and transmission system.
- For large-capacity models, an hydraulic coupler is provided
ADVANTAGES :
- Very fast mixing and emptying : approximately 2 minutes.
- Complete emptying of the equipement is ensured.
- Adaptation of a pneumatic control swivel hatch.
- The mixer can be weighed on stress gauges.
- Maintenance is reduced to beauring lubrication.
- Easy access to th inside through the large inspection doors.
- The equipement can be fitted with rotary cleaning tools.
