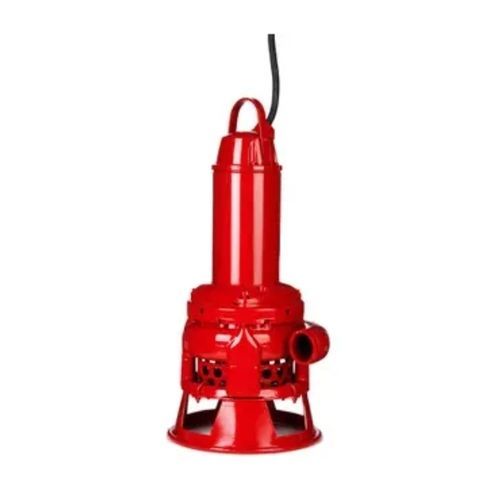

Centrifugal pump IP68 | Bravo 400slurryelectricsubmersible
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- slurry
- Operation
- electric
- Priming
- submersible
- Domain
- industrial
- Applications
- booster
- Flow
Min.: 0 l/s
(0 us gal/s)Max.: 60 l/s
(15.85032 us gal/s)- Power
14 kW
(19.03 hp)
Description
The Bravo 400 is extremely wear-resistant thanks to the use of Hard-iron™ and the low shaft speed. Equipped with an agitator to enhance the 'up-stirring' capabilities it is a superior quality pump for all kinds of slurry applications.
Pump type:
Electrical submersible slurry pump
Classification:
Protection class IP 68
Max submersion depth: 20 m/66 ft
Cable:
20 m/66 ft SUBCAB
This pump requires an external starter box
Discharge:
Connection: Victaulic
Limitations:
Allowed pH range: 5.5 - 14
Max liquid temperature: 40°C/104°F
Materials:
Drive unit: Cast iron
Shaft, fasteners and lifting handle: Stainless steel
Pump housing, discharge, impeller and agitator: Hard-ironTM
