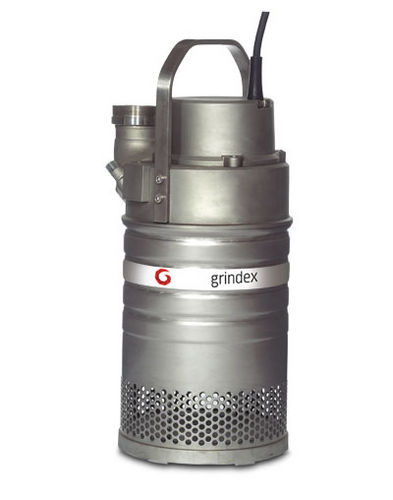

Impeller pump IP68 | Major Inoxfor wastewaterelectricsubmersible
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- for wastewater
- Operation
- electric
- Priming
- submersible
- Domain
- industrial
- Applications
- drain
- Material
- stainless steel
- Other characteristics
- modular
- Flow
Max.: 43.5 l/s
(11.49148 us gal/s)Min.: 0 l/s
(0 us gal/s)- Power
Max.: 5.6 kW
(7.61 hp)Min.: 5.3 kW
(7.21 hp)
Description
With its impressive allowed pH range, from 2 up to 11, it is hard to find an application that can't be handled by the Inox pumps. The modular design drives service cost down and at the same time offers the flexibility to change from a Normal pressure pump (N), to a High pressure pump (H). All materials in contact with the liquid are made out of AISI 316 stainless steel or better.
Pump type:
Electrical submersible
Three-phase
Classification:
Class IP 68
Maximum submersion: 20 meters
Cable:
20 meters, SUBCAB:
3-phase: 4G2.5mm2
Discharge:
N : 4" - hose, ISO-G or NPT
H : 3" - hose, ISO-G or NPT
Limitations:
pH 2-11
Maximum liquid temperature: 40°C
