Hydraulic pallet truck HPT

handlingstainless steelsteel

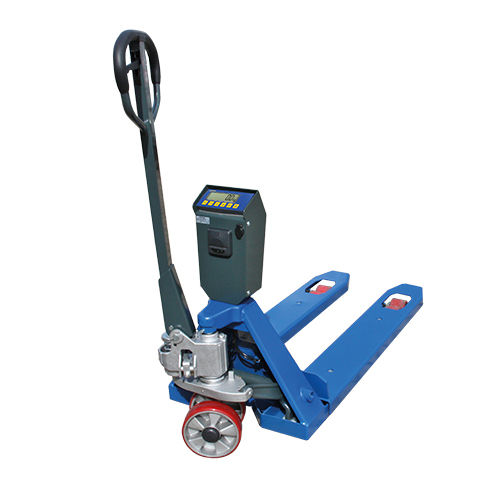

WEIGHING HAND PALLET TRUCK HPT Accuracy ±0,1% of the applied load The Griptech weighing pallet truck consists of a robust basic unit with 2000 kg load capacity and is equipped with high-quality weighing components. The hydraulic housing is galvanized and the large handle is covered with rubber. In each wheel arm, two load cells are mounted in a line. The battery (external charger) has capacity for approx. 100 operating hours (without printer). FEATURES ■ robust basic construction ■ 4 load cells in one line for optimal weighing results ■ own weight 130 kg ■ protection class IP54 (weighing cells IP65) ■ indicator in ergonomic height ■ standard polyurethane tandem wheels OPTIONS ■ Integrated protection against deep discharge of the battery ■ Thermal printer as built-in printer with date and time ■ Indicator with numeric keypad, memory locations and special functions (R420) ■ Piece counting function (add function is omitted) ■ Relay switching with 250VAC / 3A control signal incl. Cable and plug (add function not required) ■ RS 232 interface incl. Connection cable and Sub-D connector ■ Indicator X320 protection class IP 69K ■ Different fork length, stainless steel versions ■ Nylon wheels (hand pallet truck)
