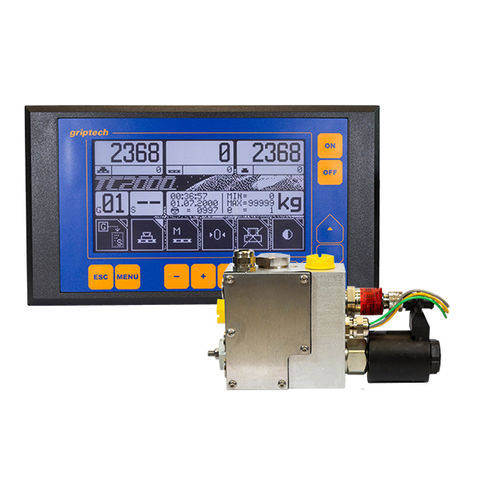

On-board weighing system TC2000

TC2000 Accuracy ± 0,2% of the truck capacity Very stable and high-quality weighing system based on DMD (Dynamic Weight Determination software). The best weighing result is guaranteed in combination with the TC indicator. This system has no influence on the capacity of the truck and its independent of the load center point and can be used in combination with attachments. The weighing components are built-in protected inside the forklift truck and are insensitive to overload and impact forces and are suitable for intensive and rough applications. Suitable for all forklifts, telehandlers and construction machines. WEIGHING PROCEDURE: Lift the load to a height marked on the mast. The system activated by pressing a button on the indicator and the fork carriage lower automatically 150mm (oil flows via a return line to the tank). The weight is now calculated and appears in the display. FEATURES ■ Indicator TC ■ High and stable weighing accuracy ■ For forklifts with a capacity up to 50.000kg ■ Weighing procedure not influenced by the driver ■ Components protected for impact forces and vibrations ■ Easy installation and calibration ■ No sensors directly on the mast ■ Integrated inverter for supply voltage 12-80 volts ■ Protected against peak voltages ■ Optional indicator in stainless steel housing ■ Optional with ATEX certificate ■ Options such as printer and data transmission
