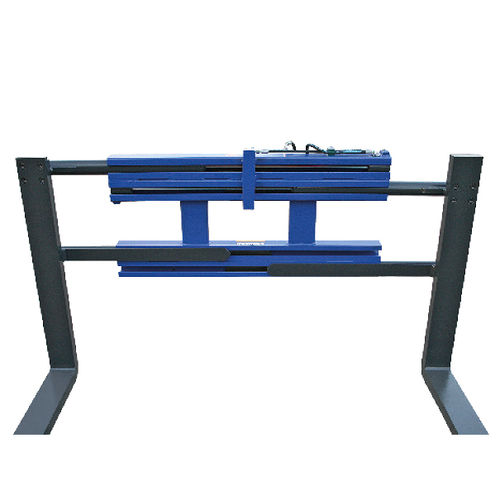

Hydraulic positioner FPN

linearsingle-axis positioningfork

CLEAR-VIEW FORK POSITIONER FPN Beyond the frame width With the newly developed fork positioner from Griptech, based on clamping body, the fork tines can be shifted outside the width of the frame. This is particularly well suited for loading and transporting long goods and wide pallets. Combine your attachment with a hydraulic weighing system from Griptech. For a better view we recommend an Orlaco camera system. The new design has yielded the following unique Features: ■ Maximum visibility ■ Smallest possible load offset Dimension ■ Robust guide bodies with Omega profiles ■ Improved residual load bearing capacity for the forklift ■ Piston rods protected in the guide profile ■ Long service life and maintenance-friendly The adjusting cylinders also function as a sliding arm and the round shape ensures optimum power transmission to the guide body. The specially shaped and extruded profiles form the connection with the vehicle without additional back plate. The forks are screwed in the upper area with the slide arms and the simple guide shaft, in the lower area, is welded to the fork back. The plastic wear strips are located around the slide arms for an optimal contact surface. The connecting elements between the upper and lower guide profiles are located in front of the mast profiles, so that the view is not disturbed. A separate sideshift is optional. In combination with KOOI telescopic forks the KOOI telescopic forks are bolted.
