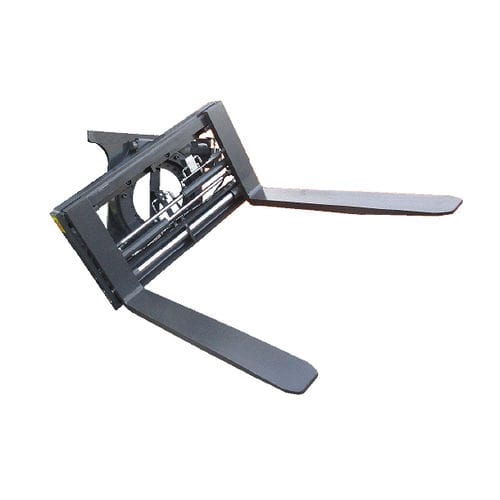

Hydraulic positioner KIK

rotaryfork

FORK POSITIONER Rotating The KIK series rotating devices can be combined with a fork positioner and can empty containers of different widths. 360° endless rotation in both directions. The drive is implemented via a hydraulic motor that engages with the gear ring via a worm shaft. This direct drive without intermediate housing, whereby three teeth are always engaged, ensures reduced stress for the teeth, a smooth running and a long service life. The following variants from 1500 kg to 2800 kg load bearing capacity are available: ■ KIK/ZVR or KIK/ZVC: rotating fork positioner (adjustment range within the frame width) ■ KIK/FPN: rotating fork positioner (adjustment range outside the frame width) ■ Combination with KOOI telescopic forks ■ Combination with integrated weighing system ■ Optionally available with separate sideshift
