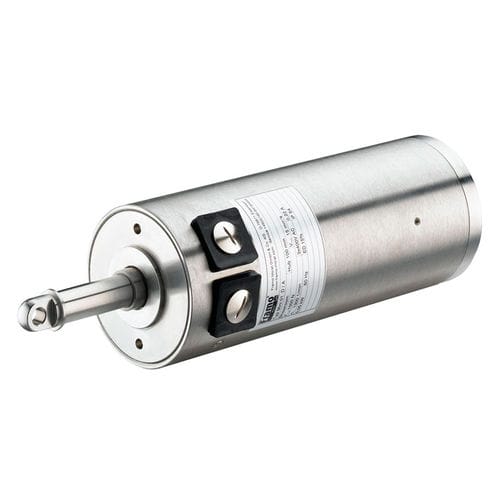

Linear actuator MINI 01

electricIP54for lifting

MINI 01 STANDARD VERSION: · Lifting force up to 1600 N · Lifting speed up to 130 mm/s · Standard stroke lengths up to 300 mm · Three-phase current · Basic stroke 100 mm · Single-stage · A-fastening The Mini 01 lifting spindle drive with integrated limit cut-off offers a lifting speed of up to 130 mm/s, depending on the transmission ratio, and a lifting force of up to 1600 N. The lifting spindle drive is characterised by its compact design and is therefore extremely well suited for applications in reversing operation in cramped installation conditions. In the standard version the drives are protected against splash water (IP54) and optionally against water jets (IP65). Further options substantially increase the number of possible applications. Beyond that, structural adaptations are also conceivable in the case of large numbers of items in order to tailor the geared motor individually to certain requirements. Projects already realised can be found here. With the five sizes Mini 0, Mini 01, Mini 1, Mini 2 and Mini 3, the Mini series covers lifting speeds from 0.5 to 130 mm/s and a lifting force range of up to 26,000 N..
