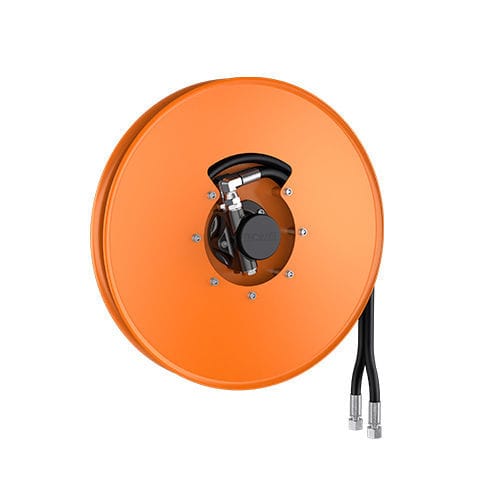

Hose reel Tecreel

for trucksfor craneself-retracting

The Tecreel range of self-retracting hose reels provides an efficient way of conveying hydraulic power from fixed to moving points on cranes, truck mounted cranes, telehandlers, lift trucks and container handling equipment. The integral coil spring ensures that the hoses remain consistent under tension. Four models are available; each complemented by a choice of 2 or 4 port swivels providing 180° of free hose movement. Tecreel eliminates slack or trailing hydraulic hoses where continuous variation of hose length is required, while transferring hydraulic oil to moving, rotating and swivelling parts. All models can be supplied in various flange diameters, hose bore and pull-off lengths. The Tecreel comes in six different sizes with a reel diameter from 31,8 cm up to 60 cm (left and right handed). If supplied with hose fitted, SAE100R7 hose is supplied as standard. Other types of hoses are available upon request.
