Chain conveyor

wedgefor bottlesprocess

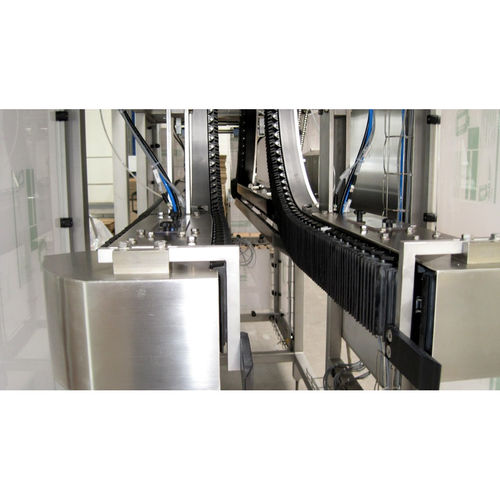

The Gronemeyer neck sterilizer permits moisting of the cap with the fluid in the container. Machine dimensions depend on the conveyor performance and the desired moisting time. Moisting occurs during continuous material flow. The machine is a space-saving solution due to the vertical moisting track. The design permits products to run through the machine without turning process, if necessary. TECHNICAL DATA • - Conveying performance: up to 60,000 units/h • - Moisting path: up to 10 m • - Product weight: up to 40 kg • - Product width: 20 - 450 mm • - Solid steel construction in painted or stainless-steel version • - Manual width adjustment • - Automatic tensioning station for the cleated chain • - Central lubrication system for the cleated chain OPTIONAL EQUIPMENT • - Moving deflecting pulleys in the curves to reduce wear on chains and slide rails • - Motorized width adjustment • - Complete machine cover made of Makrolon or steel grid with maintenance doors • - Independent electrical control system with congestion monitoring • - Loading and unloading belts
