Cartridge filtration system PETRO-PIPE PIFH-616

for wateroilfuel

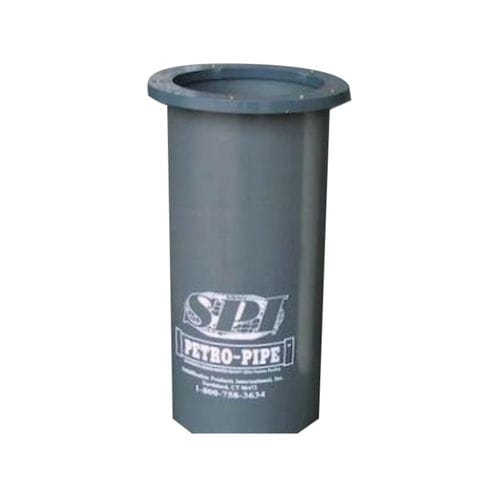

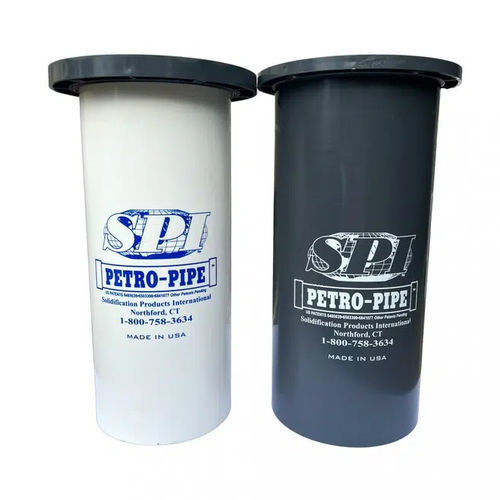

Set of case to sink with PETRO-PIPE® hydrocarbon filtration cartridge to be recessed The PETRO-PIPE® filtration cartridge + case set for hydrocarbon contaminated rainwater is to be sinked: suitable for average water flows of approximately 16 liters/min. Recognised for its robustness and reliability in industry, it is highly recommended for civil engineering applications, retention tanks, concrete pits, bunds and electrical substations. Preferably installed a 25° angle inclination. Part of the SPI® filter technology, the PETRO-PIPE® is the international range of SPI® products. Patented filtration cartridge for hydrocarbon contaminated rainwater, this set is ideal for concrete retention pits. The PIFH616 filter set is composed of a PVC case (PIH716) and its filter cartridge (PIF616) which slides inside. It is designed for medium flow rates (16 liters/min), for daily use. It is highly recommended to change the cartridge every 5 years to guaranty its correct solidification properties. To avoid premature clogging of the filter by impurities in the water, fix a PFB0810 or PFB1012 pre-filtration box upstream of the filter. To screw the filter directly onto the retention tanks, use the PI616M2 (2" valve fixing).
