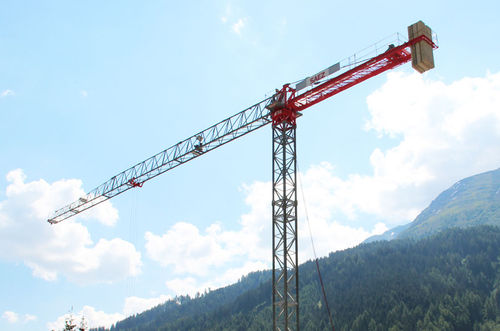

Tower crane TL 50 5Ttruck-mountedbuildingtransport
Add to favorites
Compare this product
Characteristics
- Configuration
- truck-mounted
- Structure
- tower
- Operating environment
- building
- Applications
- loading, transport
- Lift capacity
Max.: 5,000 kg
(11,023.1 lb)Min.: 950 kg
(2,094.4 lb)- Max load at max radius
1,100 kg
(2,425 lb)- Horizontal reach
Max.: 55 m
(180'05" )Min.: 15 m
(49'02" )- Hoisting speed at max load
11 m/min, 37 m/min, 75 m/min
- Crane engine power
18.5 kW, 24 kW
(25.2 hp, 32.6 hp)- Swing speed
0.3 rpm, 0.6 rpm, 0.9 rpm
(1.885 rad.min-1, 3.77 rad.min-1, 5.655 rad.min-1)- Total counterweight
6,000 kg, 7,400 kg, 8,300 kg, 9,150 kg, 9,700 kg
(13,227.736 lb, 16,314.207 lb, 18,298.368 lb, 20,172.297 lb, 21,384.839 lb)
Description
The TL 40 / TL 45 and TL 50 5T tower cranes are the smallest models in SÁEZ’s Flat-Top range, offer great versatility, and therefore are widely used in CITY works or on smaller jobs where it is necessary to hoist a maximum of 5000 Kgs. Thanks to the option of tying-in to the adjacent building, these cranes are capable of reaching impressive hook heights.
Technically, they share the same characteristics, the same motor and the same composition. They differ only in jib length: 40m, 45m and 50m respectively.
These cranes are highly optimized and carefully designed to facilitate their loading in transport containers, to be easily sent to all parts of the world.
Catalogs
TL 50 5T
11 Pages
