Truck-mounted crane SLH 70.4luffing jibfor constructionlifting
Add to favorites
Compare this product
Characteristics
- Configuration
- truck-mounted
- Structure
- luffing jib
- Operating environment
- for construction
- Applications
- lifting, loading, handling
- Other characteristics
- hydraulic, compact
- Lift capacity
4,000 kg
(8,818.5 lb)- Max load at max radius
2,100 kg
(4,630 lb)- Horizontal reach
Max.: 35 m
(114'09" )Min.: 5 m
(16'04" )- Crane engine power
24 kW
(32.6 hp)- Swing speed
0.8 rpm
(5.027 rad.min-1)
Description

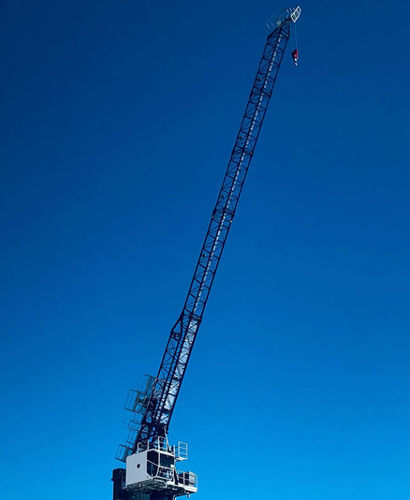

The SLH 70.4 is our new model, designed for urban centres where the available space is often at a premium. It has an “in-service” and “out-of-service” radius of just 4-metres.
This feature is achieved thanks to a special super-compact jib with hinged counter-jib ballast, as well as a reinforced slew unit.
The crane is mounted on SH 12.2 tower sections measuring 1.20 metres centre-to-centre, and they enable the SLH 70.4 to reach a height-under-hook (HUH) of up to 36 metres.
This model is equipped with a compact 35-metre jib and a maximum load of 4,000 kg, with a 33 Hp (24 kW) motor that allows it to work in “II-Falls”, reaching hoist speeds of up to 79 m/min.
In addition, the crane comes supplied with the Premium cabin, very spacious and with technological advances that are the product of more than 20 years of experience in the market.
Catalogs
SLH 70.4
9 Pages
