Truck-mounted crane SLH 110luffing jibliftinghandling
Add to favorites
Compare this product
Characteristics
- Configuration
- truck-mounted
- Structure
- luffing jib
- Applications
- lifting, loading, handling
- Other characteristics
- hydraulic
- Lift capacity
Max.: 6,000 kg
(13,227.7 lb)Min.: 1,800 kg
(3,968.3 lb)- Max load at max radius
2,000 kg
(4,409 lb)- Horizontal reach
Max.: 45 m
(147'07" )Min.: 10 m
(32'09" )- Crane engine power
24 kW, 37 kW
(32.6 hp, 50.3 hp)- Swing speed
0.8 rpm
(5.027 rad.min-1)
Description

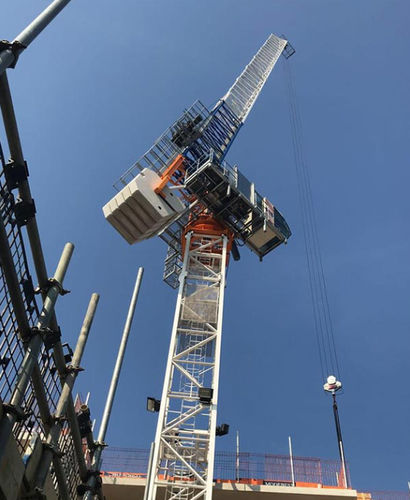

The SLH 110 is a medium sized hydraulic luffing crane that sits on sections of 1.70m, and reaches 40m HUH. This model was launched in 2016 and updated 4 years later, applying the knowledge and experience gained not only with these medium-sized cranes, but with the larger models we have since developed.
With an “out of service” radius of 10m and the same 24kW hoist mechanism found on the SLH 80 5T, the SLH 110 is also a good option for the rental sector in countries like the UK or Australia, where these cranes are in high demand.
Catalogs
SLH 110
12 Pages
