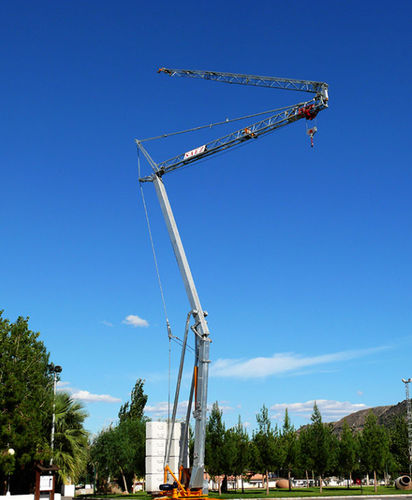

Truck-mounted crane H 25
self-erectingfor constructionfor heavy-duty applications

Add to favorites

Compare this product

Characteristics

Configuration

truck-mounted

Structure

self-erecting

Operating environment

for construction

Applications

lifting, loading, for heavy-duty applications, handling, for transport

Lift capacity

Max.: 1,800 kg
(3,968.3 lb)

Min.: 600 kg
(1,322.8 lb)

Max load at max radius

600 kg
(1,323 lb)

Horizontal reach

Max.: 25 m
(82'00" )

Min.: 10.3 m
(33'09" )

Driving speed

10 km/h, 25 km/h
(6.2 mph, 15.5 mph)

Crane engine power

4.2 kW, 5.5 kW
(5.7 hp, 7.5 hp)

Swing speed

0.3 rpm, 0.5 rpm, 0.8 rpm
(1.885 rad.min-1, 3.142 rad.min-1, 5.027 rad.min-1)

Description

This crane is a modern version of the previous H24 MTF, maintaining the characteristics of the electrical system and the single-phase connection (MTF). As for the rest of the technical characteristics, it increases the load curve, giving it an extra metre of jib and increases the maximum load from 1,500 kg to 1,800 kg. Its jib is 25m long and it has a maximum working height of 18m. For transport, only an Open Top container or a standard truck is needed. In addition, like all the Saez self-erecting cranes, it has the possibility of incorporating a wheel train to facilitate its movement on the road for short distances, either job-site wheels or a 25 km/h axle. The H25 can be supplied with standard spindle legs or with jacks, and can be equipped with remote connection and prohibited zone systems.
