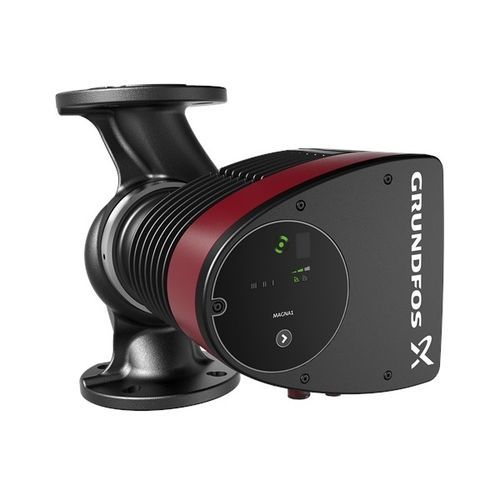

Water pump MAGNA1 series
airelectriccentrifugal

water pump
water pump
Add to favorites
Compare this product


Characteristics

Fluid
water, air
Operation
electric
Technology
centrifugal
Mobility
stationary, mobile
Domain
industrial
Applications
cooling, for control, recirculation
Voltage
230 V
Other characteristics
digital, heating
Flow

Max.: 69 m³/h
(2,436.712 ft³/h)

Min.: 0 m³/h
(0 ft³/h)

Pressure

Max.: 16 bar
(232.06 psi)

Min.: 0 bar
(0 psi)

Head

Max.: 17 m
(55'09" )

Min.: 0 m
(0'00" )

Power

Max.: 56 W
(0.08 hp)

Min.: 9 W
(0.01 hp)

Fluid temperature

Max.: 110 °C
(230 °F)

Min.: -10 °C
(14 °F)

Length

Max.: 433 mm
(17 in)

Min.: 196 mm
(8 in)

Height

Max.: 450 mm
(17.72 in)

Min.: 190 mm
(7.48 in)

Weight

Max.: 34.4 kg
(75.84 lb)

Min.: 4.41 kg
(9.72 lb)

Description

Commercial air conditioning Commercial heating Domestic hot water recirculation Domestic heating District cooling District heating Industrial heating The Grundfos MAGNA1 circulator pump is ideal for basic performance needs in heating and cooling applications. The pump offers basic system control and monitoring and can communicate via a fault relay and digital start/stop. MAGNA1 is a cost-efficient circulator pump that gets the simpler jobs done MAGNA1 is a canned rotor circulator pump, which is a cost-efficient solution for any jobs that do not require highly-advanced intelligent communication and control. The pump offers a fault relay output and a digital start/stop input, enabling integration with simple building management systems. MAGNA1 is designed to circulate liquids in a wide range of applications including heating, cooling, and domestic hot water systems, to name a few. Based on the tried and tested MAGNA technology of its predecessors, it is a reliable, cost-efficient and user-friendly circulator. Best-in-class efficiency MAGNA1 offers best-in-class efficiency, resulting in significant energy savings.
