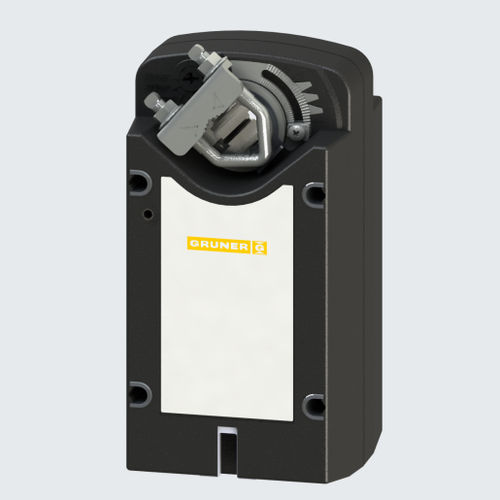

Electric damper actuator 341-024D-03rotaryIP54for ventilation systems
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Movement
- rotary
- Protection class
- IP54
- Other characteristics
- for ventilation systems, DC, spring-return
- Torque
3 Nm
(2.21 ft.lb)- Voltage
24 V
- Ambient temperature
Min.: -30 °C
(-22 °F)Max.: 80 °C
(176 °F)- Rotation angle
90 °
- Operating time
20 s, 40 s
- Weight
1,300 g
(45.86 oz)
Description
Spring return actuator for adjusting dampers in HVAC installations
•Control2-point
•Damper sizeup to approx. 0,6 m²
•Shaft couplingclamp
◊ 8-13 mm / Ø 8-16,5 mm
Electrical data
Nominal voltage range : 19...29 VAC/DC
Power consumption motor (motion) : 5,0 W
Power consumption standby (end position) : 1,5 W
Wire sizing : 7,0 VA
Control : 2-point
Feedback signal : -
Auxiliary switch : -
Contact load : -
Switching point : -
Connection motor : cable 1000 mm,
2 x 0,75 mm² (halogen free)
Connection feedback potentiometer : -
Connection auxiliary switch : -
Connection GUAC : -
Functional data
Damper size : up to approx. 0.6 m²
Synchronised speed : -
Direction of rotation selected by mounting
Manual override : manual operation
Angle of rotation : 0°...max. 95°
can be limited with adjustable
mechanical end stops
Sound power level motor : < 45 dB(A)
Sound power level spring 60 000 cycles (0°...95°...0°)
