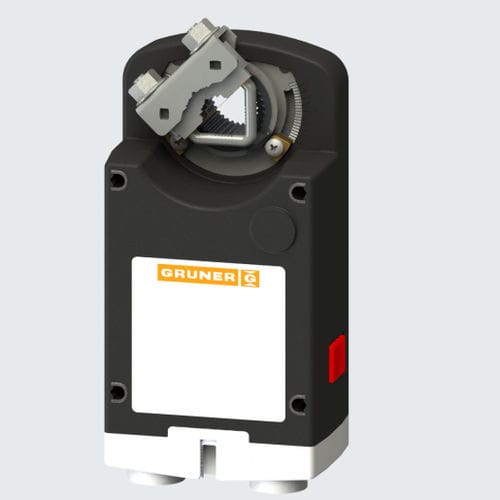

Electric damper actuator 363-230-20

rotaryfor ventilation systemsDC

Rotary actuator for adjusting dampers in HVAC installations •Control2-/3-point •Damper sizeup to approx. 4 m² •Shaft couplingclamp ◊ 9-18 mm / Ø 9-26 mm Electrical data Nominal voltage range : 85...265 VAC/DC Power consumption motor (motion) : 3,0 W Power consumption standby (end position) : 1,5 W Wire sizing : 7,0 VA Control : 2-/3-point Feedback signal : - Auxiliary switch : - Contact load : - Switching point : - Connection motor : cable 1000 mm, 3 x 0,75 mm² (halogen free) Connection feedback potentiometer : - Connection auxiliary switch : - Connection GUAC : - Functional data Damper size : Synchronised speed : ±5% Direction of rotation selected by switch Manual override : gearing latch disengaged with pushbutton, self-resetting can be limited with adjustable mechanical end stops Running time : Sound power level : 60 000 cycles (0°...95°...0°)
