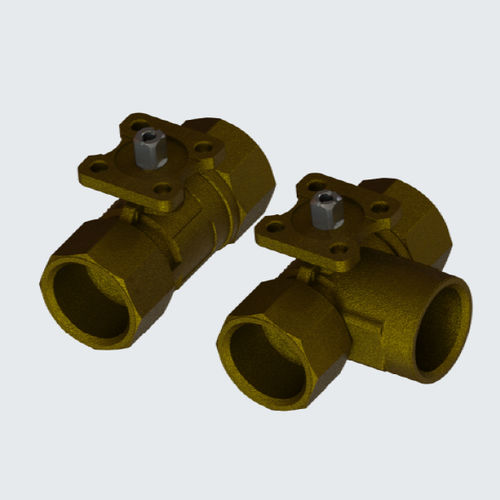

Ball valve BOFB...K...Belectricflow controlfor hot water
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- electric
- Function
- flow control
- Media
- for hot water, for steam
- Body
- female, stainless steel, brass
- Applications
- for HVAC installations
- Number of channels
- 3-way, 2-way
- Other characteristics
- DIN, with actuator
- DN
Min.: 15 mm
(0.591 in)Max.: 50 mm
(1.969 in)- Pressure
40 bar
(580.2 psi)- Temperature
Min.: -30 °C
(-22 °F)Max.: 140 °C
(284 °F)- Flow rate
Min.: 0 m³/h
(0 ft³/h)Max.: 63 m³/h
(2,224.82 ft³/h)
Description
Control ball valve to control the flow of hot and cold water and Glykol solutions (max. 50%) in HVAC systems conjunction with a rotary actuator
Technical data
Valve
Flow disc : with and without flow disk
Media : - hot and cold water (VDI 2035)
- water with glycol (max. 50%)
- steam 121°C at 103 kPa
Close-off pressure ps : 1380 kPa
Differential pressure pmax : 600 kPa (without flow disk)
340 kPa (with flow disk)
Differential pressure note : 240 kPa (low noise operation)
Flow characteristic : equal percentage at 2-way/3-way valve
linear at 3-way valve in bypass
(VDI/VDE 2178)
Leakage rate : < 0.01% from the Kvs, < 1% for bypass port
leak-proof
Connection : female thread (Rp, ISO 7/1)
Angle of rotation : 0...max. 90°
Mounting position : vertical to horizontal (in relation to shaft)
Materials
Case : brass (DIN EN 12165, CW617N)
Valve ball : stainless steel (EN 10088-2)
Valve shaft : stainless steel (EN 10088-2)
Valve shaft gasket : 2 x EPDM O-ring
Gasket : PTFE with graphite part and EPDM O-ring
Flow disc : AMODEL AS 1145HS
Lubrication : accordance with approval
