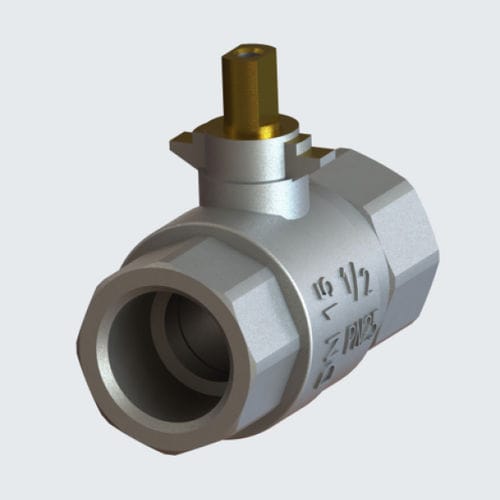

Ball valve BOFI serieselectrically-actuatedshut-offfor water
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- electrically-actuated
- Function
- shut-off
- Media
- for water
- Body
- female, brass
- Applications
- for HVAC installations
- Number of channels
- 2-way
- Other characteristics
- with actuator
- DN
Max.: 50 mm
(1.969 in)Min.: 15 mm
(0.591 in)- Pressure
25 bar
(362.6 psi)- Temperature
Max.: 100 °C
(212 °F)Min.: -20 °C
(-4 °F)- Flow rate
Max.: 290 m³/h
(10,241.25 ft³/h)Min.: 22 m³/h
(776.92 ft³/h)
Description
Shut/off ball valve to control the flow of hot and cold water and Glykol solutions (max. 30%) in HVAC systems conjunction with a rotary actuator
Technical data
Valve
Flow disc : without flow disk
Media : - hot and cold water (VDI 2035)
- water with glycol (max. 30%)
- condensate or air
- caustic soda, citric acid, salt water
Close-off pressure ps : -
Differential pressure pmax : 2500 kPa
Differential pressure note : 200 kPa (low noise operation)
Flow characteristic : see safety remarks
Leakage rate : A - leak-proof (DIN EN 12266-1)
Connection : female thread (Rp, ISO 7/1)
Angle of rotation : 0...max. 90°
Mounting position : vertical to horizontal (in relation to shaft)
Materials
Case : brass
Valve ball : brass
Valve shaft : brass
Valve shaft gasket : NBR
Gasket : PTFE with graphite part and EPDM O-ring
Flow disc : -
Lubrication : accordance with approval
Safety
CE : PED 97/23/EC
Maintenance : maintenance free
Equipment
Equipment : couplings
inserts
adapter
