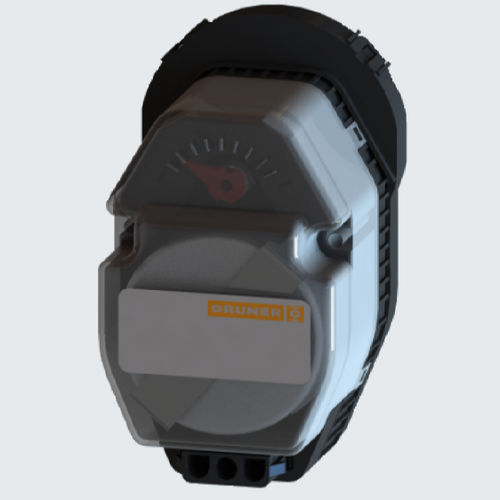

Electric damper actuator 237D-024-50rotaryIP20for OEM
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Movement
- rotary
- Protection class
- IP20
- Other characteristics
- for OEM, DC, spring-return
- Torque
1 Nm
(0.74 ft.lb)- Voltage
24 V
- Ambient temperature
Min.: -20 °C
(-4 °F)Max.: 80 °C
(176 °F)- Rotation angle
90 °
- Operating time
10 s, 12 s
- Weight
300 g
(10.58 oz)
Description
Spring return actuator for adjusting dampers in HVAC installations
•Control2-point
•Feedback signal1x switching output
•Damper sizeup to approx. 0,4 m²
Technical data
Electrical data
Nominal voltage range : 19...29 VAC/DC
Power consumption motor (motion) : 3,5 W
Power consumption standby (end position) : 1,5 W
Wire sizing : 4,0 VA
Control : 2-point
Feedback signal : switching output
limit switch : 1x SPST (Ag)
Contact load : 5 (2,5) A, 250 VAC
Switching point : 90°
Connection motor : Tyco - AMP universal MATE-N-LOK Nr.: 350766-1
Connection limit switch : via motor plug
Functional data
Damper size : up to approx. 0,4 m²
Synchronised speed : ±5%
Direction of rotation : Motor : clockwise
Spring: counter clockwise
Manual override : -
Sound power level motor : < 35 dB(A)
Sound power level spring : < 45 dB(A)
