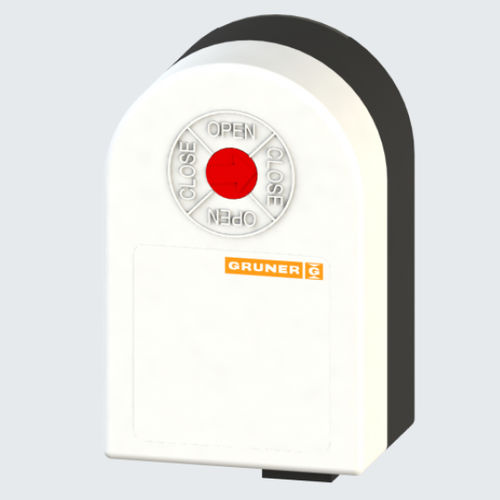

Electric damper actuator 224D-024-VNxrotaryfor OEM
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Movement
- rotary
- Other characteristics
- for OEM
- Torque
10 Nm
(7.38 ft.lb)- Voltage
24 V
- Ambient temperature
Max.: 80 °C
(176 °F)Min.: -30 °C
(-22 °F)- Rotation angle
90 °, 180 °, 270 °
- Operating time
90 s
- Weight
350 g
(12.35 oz)
Description
Rotary actuator for adjusting valves in HVAC installations
•Control3-point
•Ball valve adaptionadapter and shaft
with form fit
Technical data
Electrical data
Nominal voltage range : 19...29 VAC/DC
Power consumption motor (motion) : 2,5 W
Power consumption standby (end position) : 3,5 W
Wire sizing : 3,5 VA
Control : 3-point
Connection motor : cable 900 mm,
3 x 0,75 mm² (halogen free)
Functional data
Direction of rotation : in a clockwise direction (360°)
Sound power level : 60 000 cycles (90°...180°...270°...360°)
