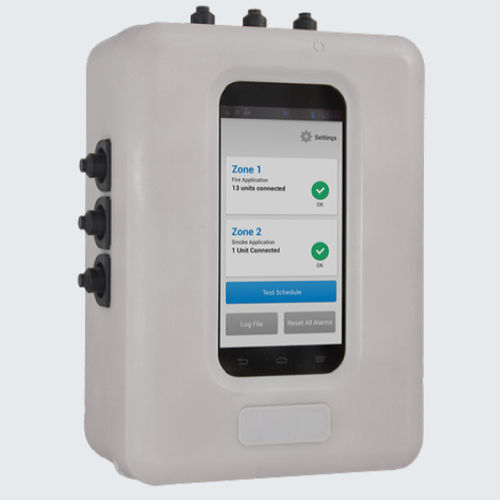

Actuator controller fs-M60

Smart controller M60 with high resolution touch screen to control and monitor up to 120 UFC via BACnet or Modbus Technical data Electrical data Nominal voltage : 5 VDC (power supply for 230 VAC included in delivery) Power consumption : < 10 W Connection : screw terminals Remote access : WiFi / cellular connection Modbus Protocol : Modbus RTU Medium : RS-485, not electrically isolated Number of nodes : 2x Modbus à 60 UFC (= 120 UFC) Baud rates : 9600 Bd Adress : Modbus adress 121 (zone 1) und 122 ( zone 2) for the M60 Termination : 120 Ω line termination in the device on extra pin (if last device in the line) Response time : < 500 ms BACnet Protocol : BACnet MS/TP Medium : RS-485, not electrically isolated Number of nodes : 2x BACnet à 60 UFC (= 120 UFC) Baud rates : 9600 / 19200 / 38400 / 76800 Bd (auto detect), default 38400 Bd BACnet instance number : zone 1: 804121; zone 2: 804122 Termination : 120 Ω line termination in the device on extra pin (if last device in the line) Response time : < 100 ms Safety Protection class : III (safety extra low voltage) Degree of protection : IP 42
