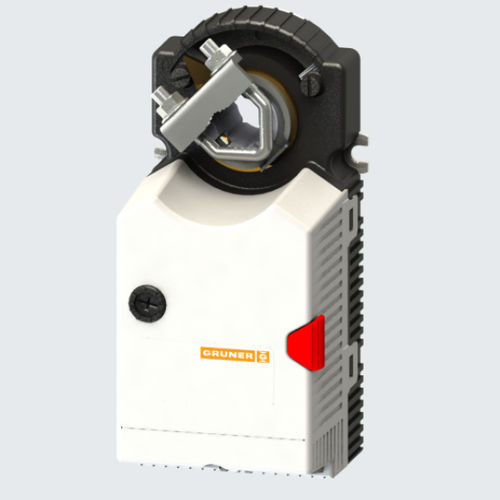

Electric damper actuator UL-225-024T-070-S2

rotaryfor ventilation systems

Rotary actuator for adjusting dampers in HVAC installations •Control2-/3-point •Auxiliary switch2x freely adjustable •Damper sizeup to approx. 17,2 ft² [1,6 m²] •Shaft couplingclamp ◊ 0,31-0,47 in [8-12 mm] Ø 0,31-0,63 in [8-16 mm] Technical data Electrical data Nominal voltage range : 19...29 VAC/DC Power consumption motor (motion) : 2,0 W Power consumption standby (end position) : 1,0 W Wire sizing : 3,0 VA Control : 2-/3-point Feedback signal Auxiliary switch : 2x SPDT (Ag) Contact load : 5 (2,5) A, 24 VAC Connection motor : screw terminals, 3-pin AWG 22-14 [0,5...1,5 mm²] Connection feedback potentiometer : - Connection auxiliary switch : screw terminals, 6-pin AWG 22-14 [0,5...1,5 mm²] Connection GUAC : - Functional data Damper size : up to approx. 17,2 ft² [1,6 m²] Synchronised speed : - Direction of rotation : selected by switch Manual override : gearing latch disengaged with pushbutton, self-resetting can be limited with adjustable mechanical end stops Sound power level : < 45 dB(A)
