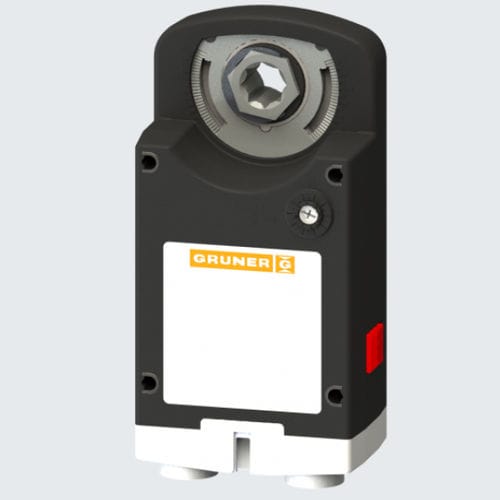

Electric damper actuator 363-024-60-S2/8F14 rotaryIP54for ventilation systems
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Movement
- rotary
- Protection class
- IP54
- Other characteristics
- for ventilation systems, DC
- Torque
60 Nm
(44.25 ft.lb)- Voltage
24 V
- Ambient temperature
Max.: 80 °C
(176 °F)Min.: -30 °C
(-22 °F)- Rotation angle
90 °
- Operating time
190 s
- Weight
1,750 g
(61.73 oz)
Description
Rotary actuator for adjusting dampers in HVAC installations
•Control2-/3-point
•Auxiliary switch2x freely adjustable
•Damper sizeup to approx. 10 m²
•Shaft couplingform fit 14 mm (8F14)
Technical data
Electrical data
Nominal voltage range : 19...29 VAC/DC
Power consumption motor (motion) : 13,5 W
Power consumption standby (end position) : 1,5 W
Wire sizing : 16,5 VA
Control : 2-/3-point
Feedback signal : -
Auxiliary switch : 2 x SPDT (Ag)
Contact load : 5 (2,5) A, 250 VAC
Connection motor : cable 1000 mm,
3 x 0,75 mm² (halogen free)
Connection auxiliary switch : cable 1000 mm,
6 x 0,75 mm² (halogen free)
Functional data
Damper size : up to approx. 10 m²
Synchronised speed : ±5%
Direction of rotation : selected by switch
Manual override : gearing latch disengaged with
pushbutton, self-resetting
Sound power level : < 45 dB(A)
