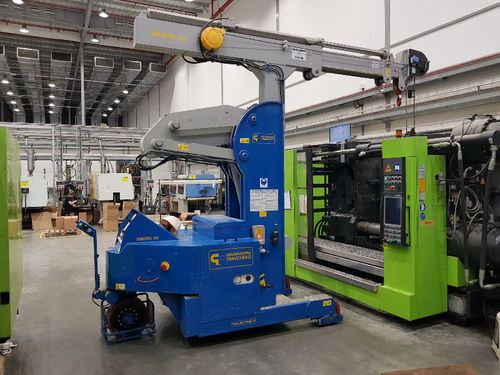

Mobile crane MINIDREL 50S
boomtelescopicfolding

mobile crane
mobile crane
mobile crane
mobile crane
mobile crane
mobile crane
mobile crane
mobile crane
mobile crane
mobile crane
Add to favorites
Compare this product


Characteristics

Configuration
mobile
Structure
boom, telescopic, folding, articulated
Operating environment
for construction, harbor, for mining applications, for railway applications, for the recycling industry
Applications
handling, for heavy-duty applications, loading, drum-handling, lifting, for hazardous environments, materials handling, mold handling, for industrial applications, transport
Other characteristics
electric, hydraulic, compact, light, height-adjustable, balanced, electro-hydraulic, military
Lift capacity

Min.: 5,000 kg
(11,023.1 lb)

Max.: 5,000 kg
(11,023.1 lb)

5,000 kg
(11,023.1 lb)

Working height

Min.: 0 m
(0'00" )

Max.: 4.8 m
(15'08" )

Description

Hook capacity 5.000 Kg Min.height hook elevation 2,400 mm Max height hook elevation 4,800 mm Possibility of extension in height up to (optional) 5,000 mm Standard telescopic extension 1,350 mm Capacity at max. standard telescopic extension 5.000 Kg Possibility of telescopic extension up to (optional) 3,600 mm Capacity at max. telescopic extension (point 7) 1,700 Kg Wheelbase 2,250 mm Dimensions - length 2,720 mm Dimensions - width 1,430 mm Dimensions - height 2,850 / 2,950 / 3,050 mm Variable movement speed from 0 to 60 m / min Slope that can be overcome when empty 8% Slope that can be overcome at full load 3% Front wheels 2 x Ø300 x 140 mm Rear wheels 1 x Ø 450 x 180 mm Polyurethane wheels material Drive wheel drive REAR WHEEL Total weight 6.700 Kg Electric motor power 5.0 KW / 24 cc. 420 Ah / 24 V traction battery Battery charger 110/240 V -50/60 Hz GEL battery

VIDEO
