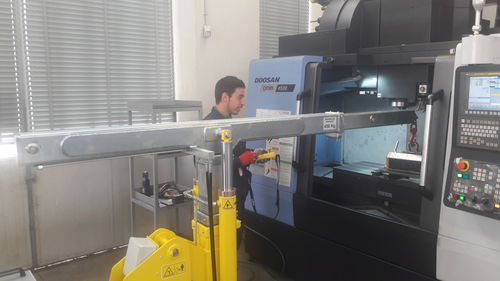

Mobile crane GB 500 VERTICAL

boomtelescopicself-erecting

Maximum load capacity 500 Kg Standard min. hook's height from the ground 950 mm Standard max. hook's height from the ground 2.200 mm Possibility to extend height up to (option) Standard max. telescopic extension 1.960 mm Capacity at standard max. telescopic extension 280 Kg Possibility to extend telecopic extension up to (option) 3.000 mm Capacity at max.telescopic extension (point 7) 180 Kg Rotation (option) 60° - 150° -270° Wheelbase 1.200 mm Dimensions- lenght 1.550 mm Dimensions- width 950 mm Dimensions- height 1.600 mm Adjustable speed from / to From 0 to 40 m/min Max. surmountable slope ( unloaded ) 8% Max. surmountable slope ( loaded ) 3% Front wheels 4 x Ø 160 x 60 mm Wheels material Polyurethane Drive REAR WHEEL Total weight: 1.350 Kg Electric motor power 1,5 KW / 12 V. Hardened battery (standard) 200 Ah / 12 V Battery charger on board 110 / 240 V -50/60 Hz Lead acid battery Gel battery
