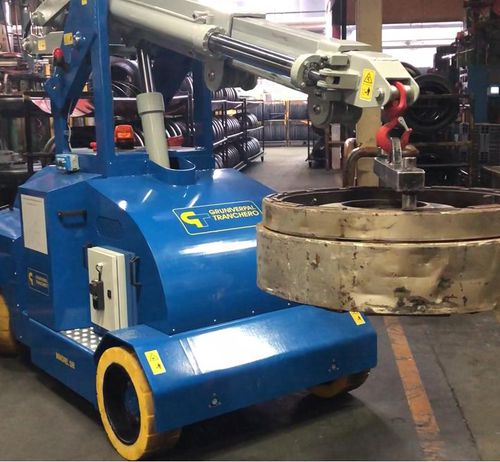

Mobile crane MINIDREL 50B SRR

boomtelescopicarticulated

Maximum load capacity 5.000 Kg Standard min. hook's height from the ground 1.200 mm Standard max. hook's height from the ground 7.500 mm Possibility to extend height up to (option) 8.500 mm Standard max. telescopic extension 4.500 mm Capacity at standard max. telescopic extension 1.000 Kg Possibility to extend telecopic extension up to (option) 5.500 mm Capacity at max.telescopic extension (point 7) 600 Kg Wheelbase 2.180 mm Dimensions- lenght 3.060 mm Dimensions- width 1.350 mm Dimensions- height 2.520 mm / 2.650 mm Adjustable speed from 0 to 100 m/min Max. surmountable slope (unloaded) 16% Max. surmountable slope (loaded) 8% Front wheels 2 x ø 533 x 178 mm Rear driving wheel 2 x ø 457x 152 mm Wheels material Cushion Drive FOUR WHEELS Total weight 5.700 Kg Electric motor power 5,0 KW / 48 cc. Hardened battery (standard) 460 Ah / 48V Battery charger on board 380/440 V -50/60 Hz Lead acid battery
