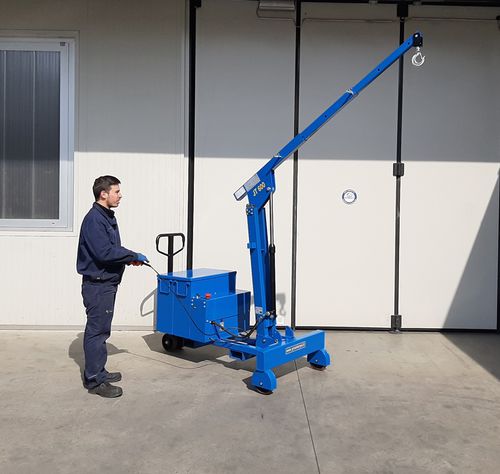

Mobile mini crane JT600

telescopicfor constructionlifting

JT600 WITHOUT ROTATION Electric or semi-automatic mini cranes with capacity up to 600 kg. JT600 is the perfect solution of mini-crane that, with a limited investment, lets to carry our any type of lifting (industrial maintenance, tooling of CNC or automatic machines, mould lifting, activities on construction sites, etc.) with the maximum safety and flexibility. Electric or semi-automatic mini cranes with capacity up to 600 kg. Features Serie JT600 Maximum load capacity 600 Kg Standard min. hook's height from the ground 2.560 mm Standard max. hook's height from the ground 1.520 mm Capacity at standard max. telescopic extension 200 Kg Drive Manual Lifting Electric Telescopicing Manual Dimensions- lenght 1.618 mm Dimensions- width 1.010 mm Dimensions- height 1.730 mm Max. surmountable slope ( unloaded ) 5% Max. surmountable slope ( loaded ) 3% Front wheels 2 x Ø 180 mm Rear driving wheel 2 x Ø 180 mm Wheels material Polyurethane Total weight: 590 Kg Electric motor power 0,8 KW / 12 V Hardened battery (standard) 80Ah / 12 V Battery charger on board 110 / 240 V -50/60 Hz Gel battery
