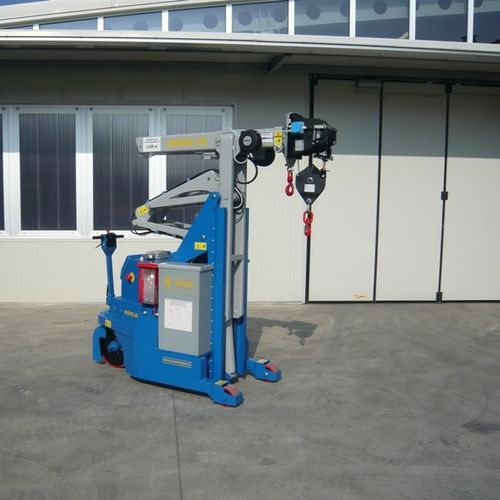

Mobile crane MINIDREL 20SL

articulatedmold handling

Maximum load capacity 2.000 kg Standard min. hook’s height from the ground 1.800 mm Standard max. hook’s height from the ground 3.600 mm Possibility to extend height up to (option) - Standard max. telescopic extension 1.500 mm Capacity at standard max. telescopic extension 1.000 kg Possibility to extend telecopic extension up to (option) 5.000 mm Capacity at max.telescopic extension (point 7) 225 kg Wheelbase 1.500 mm Dimensions - lenght 1.860 mm Dimensions - width 950 mm Dimensions - height 2.320 mm Adjustable speed from 0 to 60 m/min Max. surmountable slope ( unloaded ) 8% Max. surmountable slope ( loaded ) 3% Front wheels 2 x Ø 160 x 80 mm Wheels material Polyurethane Drive REAR WHEEL Total weight 3.600 kg Electric motor power 3,0 KW / 24 cc. Hardened battery (standard) Battery charger on board 360 Ah / 24 V Gel battery Proportional control on board of all mouvements Certification to standard 2006/42 CE Made in accordance (not certified) to standard uL508 A Certification (issued by third Party) to standard uL508 A drive hydraulic unit Automatic braking system Overloading safety system Pressure safety valves on each movements
