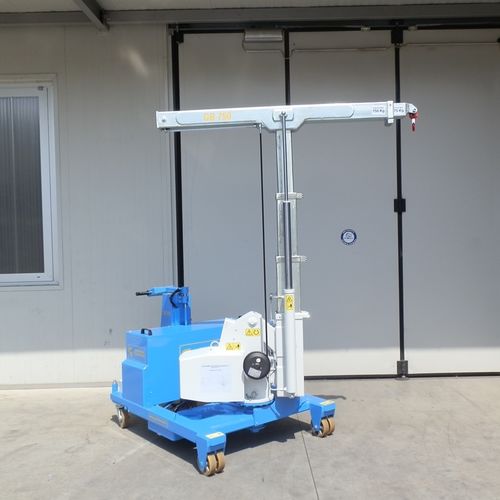

Mobile crane GB 750 VERTICAL
boomtelescopicmold handling

Mobile crane - GB 750 VERTICAL - Gruniverpal S.r.l. - boom / telescopic / mold handling
Mobile crane - GB 750 VERTICAL - Gruniverpal S.r.l. - boom / telescopic / mold handling
Mobile crane - GB 750 VERTICAL - Gruniverpal S.r.l. - boom / telescopic / mold handling - image - 2
Mobile crane - GB 750 VERTICAL - Gruniverpal S.r.l. - boom / telescopic / mold handling - image - 3
Mobile crane - GB 750 VERTICAL - Gruniverpal S.r.l. - boom / telescopic / mold handling - image - 4
Mobile crane - GB 750 VERTICAL - Gruniverpal S.r.l. - boom / telescopic / mold handling - image - 5
Mobile crane - GB 750 VERTICAL - Gruniverpal S.r.l. - boom / telescopic / mold handling - image - 6
Mobile crane - GB 750 VERTICAL - Gruniverpal S.r.l. - boom / telescopic / mold handling - image - 7
Mobile crane - GB 750 VERTICAL - Gruniverpal S.r.l. - boom / telescopic / mold handling - image - 8
Mobile crane - GB 750 VERTICAL - Gruniverpal S.r.l. - boom / telescopic / mold handling - image - 9
Add to favorites
Compare this product


Characteristics

Configuration
mobile
Structure
boom, telescopic
Applications
mold handling
Lift capacity

750 kg
(1,653.5 lb)

Working height

1,605 mm
(63.19 in)

Total weight

1,800 kg
(3,968 lb)

Description

Maximum load capacity 750 kg Standard min. hook’s height from the ground 1.605 mm Standard max. hook’s height from the ground 2.805 mm Possibility to extend height up to (option) - Standard max. telescopic extension 1.960 mm Capacity at standard max. telescopic extension 375 kg Possibility to extend telecopic extension up to (option) 3.000 mm Capacity at max.telescopic extension (point 7) 280 kg Rotation (option) 60° - 150° Wheelbase 1.200 mm Dimensions - lenght 1.650 mm Dimensions - width 1.200 mm Dimensions - height 1.600 mm Adjustable speed from 0 to 40 m/min Max. surmountable slope (unloaded) 8% Max. surmountable slope (loaded) 3% Front wheels 4 x Ø 160 x 60 mm Wheels material Polyurethane Drive REAR WHEEL Total weight 1.800 kg Electric motor power 2,0 KW/12 V Hardened battery (standard) 300 Ah/12 V Battery charger on board 110 / 240 V-50/60 Hz Gel battery Additional autonomy of battery Proportional control on board of all mouvements Certification to standard 2006/42 CE Made in accordance (not certified) to standard UL508A Certification (issued by third Party) to standard UL508A available Drive hydraulic unit Automatic braking system Overloading safety system Pressure safety valves on each movements
