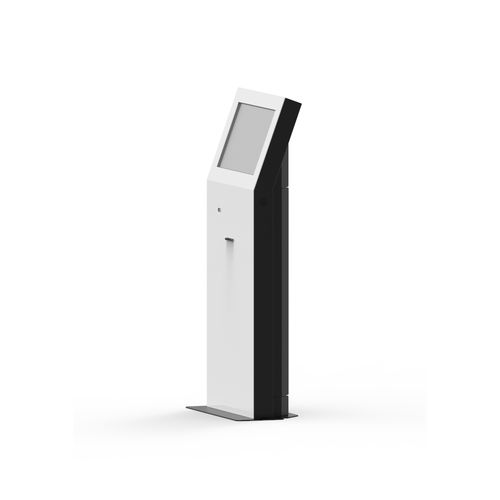

Touch screen terminal e722w

kioskLCDwith printer

BACKLIGHT YOUR PROJECTS. Thanks to laser cutting, the design of the front of the e722w can adapt to the most demanding corporate image of the customer, leaving enough area to integrate a wide variety of components. This model is equipped with a 22 ”screen with or without a touch interface, which can be combined with a payment module (PinPad + Card holder + NFC), an extended keyboard or if more specific peripherals need to be integrated. The e722w allows the integration of a wide variety of peripherals including printers with high capacity roll support up to 21 cm in diameter. It can be personalized in any color of the RAL range and / or with vinyl cut, digital image and backlit openings. Screen: > 24/7 industrial LCD. Screen resolution: > 22 ”, 16:10 (wide / horizontal). Number of screens: > 1. Video output: > HDMI, DVI, SVGA. Screen protection: > 3 + 3 mm anti-vandal glass. Access: > 1 door with security lock. Connections: > Internal terminal block with I / O switch. Production: > 4 weeks (estimated time). Material: > AP2 1.5 / 5 mm sheet steel. Flanges / internal fasteners: > Galvanized sheet. Finish: > High resistance epoxy paint. Tightness and sealing: > IP53 (Optional). Dimensions: > 1397 x 590 x 200 mm. Structure weight: > 45 kg. Use: > Indoor.
