- Scissor lift table
- Gruse Maschinenbau

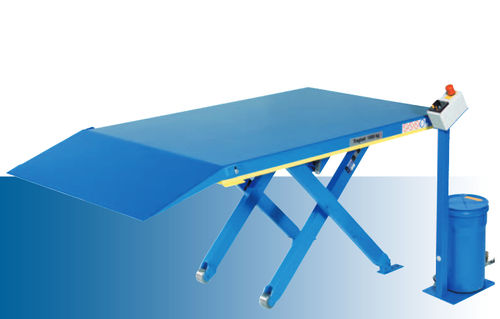

Scissor lift table Ergo-G serieshydraulicelectricmobile
Add to favorites
Compare this product
Characteristics
- Technology
- scissor
- Operation
- hydraulic, electric
- Type
- mobile
- Application
- loading
- Other characteristics
- low-profile
- Capacity
600 kg, 900 kg, 1,200 kg, 1,500 kg
(1,322.8 lb, 1,984.2 lb, 2,645.5 lb, 3,306.9 lb)- Lifting height
750 mm
(30 in)- Stroke
670 mm
(26.38 in)- Weight
200 kg, 215 kg, 230 kg, 250 kg
(440.92 lb, 473.99 lb, 507.06 lb, 551.16 lb)
Description
Standard fittings
I Operating voltage 400V
I Construction height 80mm
I Usable stroke 750mm
I Load bearing capacities from 600 to 1500kg
I No pit installation required
I Loading with fork lift trucks
I Drive-on plate at the platform or for on-floor fastening
I No inconvenient sub-frame
I Platform made of 6mm smooth sheet metal
I Dead man's control unit at hydraulic unit
I High-quality hydraulic components
I Compact hydraulic unit with 10% switch-on time
I Contact strip for foot protection
I Safety in line with EN 1520
I Maintenance-free roller bearings
Catalogs
Material handling
28 Pages
