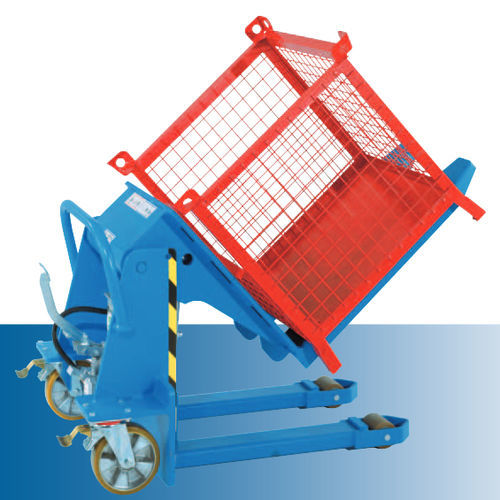

Electro-hydraulic tilter BN series

case90°mobile

Tilt angle up to 90° The container tilter is designed for heavy containers and skeleton containers. With a tilt angle of up to 90° it allows for easy unloading of a container without the operator having to bend over. Depending on individual requirements it can be supplied with 1. electro-hydraulic pump or 2. foot pump. Standard fittings I Load-bearing capacity of 1000 or 1500 kg I Tilt angle 90° max. I Operating voltage 12V, 230V, 400V I Wheels with Ø 200/85 mm I Dimensions: length 1230 mm, with 740 mm, fork length 820 mm, fork width 550 mm Tilt angle up to 90 ° 8 I Container tilter with foot pump Container tilter BN-SH BN-SH The container tilter BN-SH is the stationary version of the BN. It tilts to an angle of up to 90°. Instead of featuring load-bearing forks it is equipped to receive 900 x 1250 mm skeleton boxes. Fork lift trucks are used for loading. Standard fittings I Load-bearing capacity of 1000 or 2000 kg I Tilt angle 90° max. I Operating voltage 400 V I Control voltage 230 V I Side casing as safety feature
