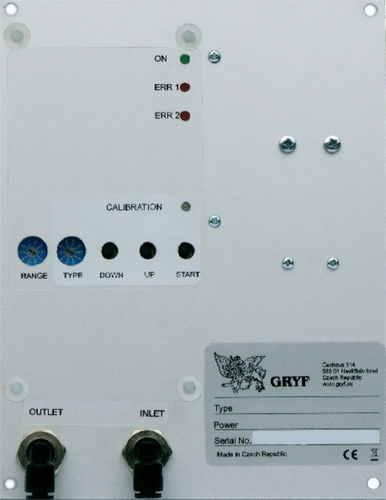

Oxygen analyzer GRYF OXY F 0001/5/2fuelsignalmonitoring
Add to favorites
Compare this product
Characteristics
- Measured entity
- oxygen, fuel, signal
- Application domain
- monitoring
- Measured value
- concentration, temperature, pressure, voltage, flow
- Configuration
- wall-mounted
Description
OEM module for measuring oxygen concentration using a fuel cell sensor.
Attributes - Data
Supply voltage - 24 V/dc ± 10%
Supply current - 60 mA
Output signal - 4 – 20 mA
Oxygen concentration range - 0,005 – 25%
Sensitivity (resolution) - 0,005%
Measuring accuracy - ± 1 % from value, ± 0,02%
Signal stabilization - 30 s (READY signal)
Signal READY - 24V, max. 100mA
Measured gas flow - 0.2 – 0.3 l / min
Inlet pressure - 1 bar ± 0.1bar
Operating temperature - 0 °C ÷ 50 °C [32 °F ÷ 122 °F]
Dimensions - 167 x 130 x 65 mm
