Oxygen analyzer GRYF OXY FS 01/1000/1
fuelsignalmonitoring

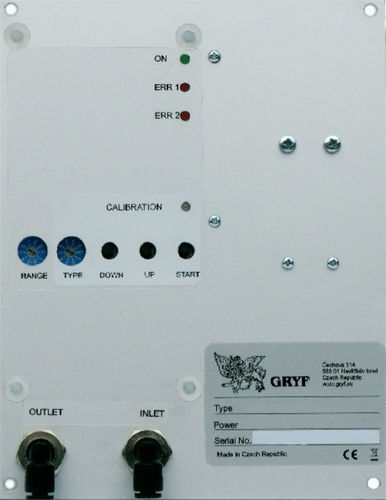

Oxygen analyzer - GRYF OXY FS 01/1000/1 - GRYF - fuel / signal / monitoring
Oxygen analyzer - GRYF OXY FS 01/1000/1 - GRYF - fuel / signal / monitoring
Add to favorites
Compare this product


Characteristics

Measured entity
oxygen, fuel, signal
Application domain
monitoring
Measured value
concentration, temperature, pressure, voltage, flow
Configuration
wall-mounted

Description

OEM module for measuring oxygen concentration using a fuel cell sensor. Attributes - Data Supply voltage - 24 V/dc ± 10% Supply current - 60 mA Output signal - 4 – 20 mA Oxygen concentration range - 0 – 1000,0ppm Sensitivity (resolution) - 0,1ppm Resolution of current output - 1 ppm (output 0 – 1000 ppm) 0.1 ppm (output 0 – 100 ppm) Measuring accuracy - ± 1 % from value, ± 0,2ppm Signal stabilization - 30 s (READY signal) Signal READY - 24V, max. 100mA Measured gas flow - 0.2 – 0.3 l / min Inlet pressure - 1 bar ± 0.1bar Operating temperature - 0 °C ÷ 50 °C [32 °F ÷ 122 °F] Dimensions - 167 x 130 x 65 mm
