Oxygen analyzer Gryf OXY P 0/100/2 PM ajsignalmonitoringconcentration
Add to favorites
Compare this product
Characteristics
- Measured entity
- oxygen, signal
- Application domain
- monitoring
- Measured value
- concentration, temperature, pressure, voltage, flow
- Configuration
- wall-mounted
- Technology
- paramagnetic
Description

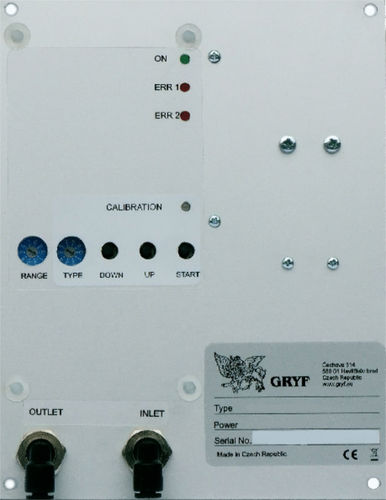

OEM module for measuring oxygen concentration using paramagnetic sensor
Attributes - Data
Supply voltage - 24 V/dc ± 10%
Supply current - max. 100 mA
Output signal - 4 – 20 mA
Oxygen concentration range - 0% – 100%
Sensitivity (resolution) - 0,01% (0 - 10%)
Measuring accuracy - ± 0,2 %
Zero Stability - ± 0.2% per month
Warm-up time - 20 sec (signal READY switch on 5min after)
Measured gas flow - 0.1 – 0.3 l / min
Error caused by flow change - max. 0.05% per 0.01 l/min
Inlet pressure - 1 bar ± 0.1bar
Operating temperature - 5 °C ÷ 50 °C [14 °F ÷ 122 °F]
Dimensions - 167 x 130 x 65 mm
Weight - 450g
