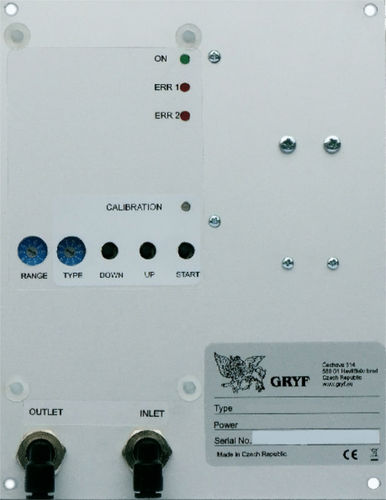

Oxygen analyzer Gryf OXY Z 02/100/2 Dsignalmonitoringconcentration
Add to favorites
Compare this product
Characteristics
- Measured entity
- oxygen, signal
- Application domain
- monitoring
- Measured value
- concentration, temperature, pressure, voltage, flow
- Configuration
- wall-mounted
- Technology
- zirconia
Description
OEM module for measuring oxygen concentration using ZrO2 sensor
Attributes Data
Supply voltage - 24 V/dc ± 10%
Supply current - 500 mA
Output signal - 4 ÷ 20 mA
Oxygen concentration range - 1 ÷ 100%
Sensitivity - 0.01%(1÷5%)
0.1% (1÷100%)
Accuracy - ± 0.5 %
Warm-up time - 60 s
Temperature stabilization after start-up - min. 5 minutes
Signal READY - 24V, max. 100mA
Measured gas flow - 0.2 ÷ 0,3 l / min
Inlet pressure - 1 bar ± 0.1bar
Maximum allowable pressure - PS - 2 bar
Operating temperature - -10 °C ÷ 50 °C [14 °F ÷ 122 °F]
Dimensions - 167 x 130 x 65 mm
