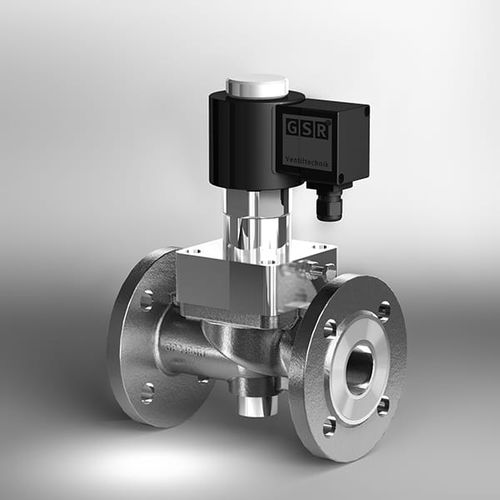

Piston solenoid valve 24pilot-operated2-wayNC
Add to favorites
Compare this product
Characteristics
- Control
- pilot-operated
- Ports/positions
- 2-way
- Function
- NC
- Medium
- for water, for gas
- Body
- flange, stainless steel, IP65
- Other characteristics
- piston
- DN
Max.: 300 mm
(11.811 in)Min.: 65 mm
(2.559 in)- Voltage
Max.: 230 V
Min.: 12 V
- Temperature
Max.: 80 °C
(176 °F)Min.: -30 °C
(-22 °F)- Pressure
Max.: 40 bar
(580.2 psi)Min.: 0 bar
(0 psi)
Description
Description
2/2-Way solenoid valve, piston design
Impulse
without differential pressure
Body
Stainless Steel, Cast iron, Cast steel
Force-pilot operated piston design valve. No differential pressure is necessary for operation. Instandard (NC) the valve closes with spring power.
Solenoid valve for gaseous and liquid media
TECHNICAL SPECIFICATIONS
Type of control: Force pilot operated
no pressure difference required
Design: Piston design
Connection: Flanges DN65 -DN300
EN 1092-1 Form B1/B2
Other flange connections like ASME on request
Installation: With actuator upright
Pressure: 0 -40 bar (see table on page 2)
Medium: Clean, neutral, gaseous and liquid media
max. viscosity: 22 mm²/s
Temperature range: Medium: -30 °C up to+80 °C
Ambient: -30 °C up to+50 °C
In consideration of the restrictions described on page 4
Body material: Spheroidal graphite iron EN-GJS-400-18-LT
Cast iron EN-GJL-250
Cast steel GP240 GH
Stainless steel 1.4581
Metallic inner parts: Brass and Stainless steel
